Baymax Cord Lock

TL;DR: A cord lock for Tiff’s hat broke… so I made a replacement shaped like Baymax since I had white material installed in my printer and I was too lazy to change it, haha.

Tiff got a great sun hat from a friend’s beach birthday party last year. I use it almost every day when walking Bailey. I noticed that the cord lock was starting to break, so I decided to make something useful while scratching my maker itch now that the need for PPE has declined.

Since I currently have black TPU (an elastic material not really suited for this application) installed in one printer, white PLA installed in my other, and a severe lazy streak, I needed to design something white and ovoid.

White? Check. Ovoid? Check. Fun? Check Check Check.

With proper source material in place, knocking out the design was straightforward for me. I decided to use the sculpting tools in Fusion 360. Sculpting is great for quickly making organic shapes that don’t require a lot of exact dimensions. Fusion makes it super easy to combine sculpted forms with parametrically defined features as well. I split Baymax’s body into two parts, one main body and a removable front plate to install the spring and legs.

Sculpt and boolean tools in Fusion 360 made designing and cutting the parts up for 3d printing a breeze!

Since the part was very small, I initially had some troubles with Cura deciding some areas (primarily the cut out for feet to retract into the body for cord installation) were so thin that I must not have wanted material there. I solved this problem by reshaping the Baymax body a bit and scaling the parts up by roughly 15%.

Functional? Check.

Overall, I’m pretty happy with the results… despite it looking slightly terrifying, IMO… like Baymax lost a fight. Maybe I should have gone with some sort of squid ¯\_(ツ)_/¯.

As always, hope everybody is staying safe and healthy!

UPDATE: 7/25/2020:

Looking at the Baymax cord lock I made last week depressed me because it looks like his body is getting pierced by some sort of tentacled foe. I decided to replace it by designing a Blooper (the squid thing from Mario games), since it is also white, but looks natural with long arms:

I think Blooper looks better than Baymax cause the strings are tentacles XD

I used all the same tools I used for Baymax to make Blooper, but it was much faster the second time around. While I like this cord lock looks better, but Tiff doesn’t like it because of all the legs, hahaha ¯\_(ツ)_/¯.

Vader Dice Tower

TL;DR: I made a villainous dice tower for a friend’s bday, combining two of his favorite things—Star Wars and board gaming.

October was a pretty busy month for me with work and fantasy football both ramping up. However, I’m very happy I was able to get some design and project time in. My friend Nick’s birthday was earlier this week, and I wanted to make him something practical yet personalized. Anybody who knows him at all knows how much he loves both board games and Star Wars, so to me, printing a Darth Vader dice tower was simply a no brainer.

For those of you who may not know, a dice tower is a very simple device to ensure fair rolls while keeping dice from flying all over the place and messing up stuff on the table. Dice towers can take on a wide variety of shapes and sizes. All that is really needed is some sort of aperture at the top to put dice in, a path which randomizes spins, and a tray to collect them at the end.

Before I started designing, I did a quick search on thingiverse and other 3d print sharing sites to make sure I wasn’t completely reinventing the wheel. I found a few Vader dice towers, but to be honest, I didn’t think they were very good in terms of amount of detail and general aesthetics. I was fortunate to find a great model of Darth Vader to begin with: https://www.myminifactory.com/object/3d-print-star-wars-darth-vader-30-cm-tall-60500.

Essentially my plan was as follows:

  1. Reorient and resize the head to maximize the print area on my bed.

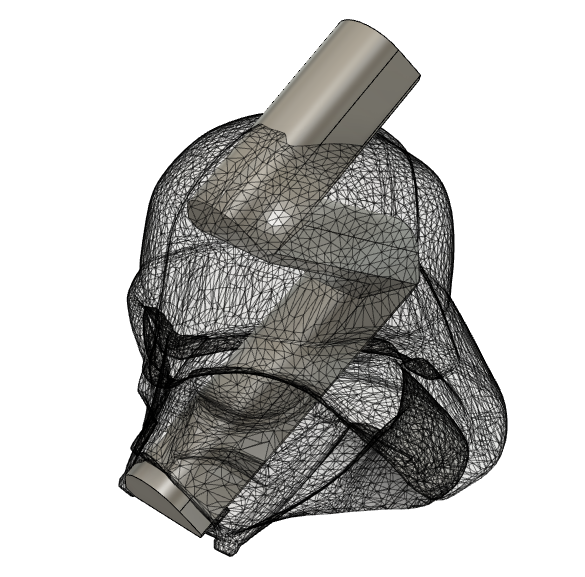

  2. Create the dice travel path leading from the top of the head out of the mouth.
  3. Subtract the path model from the head model.

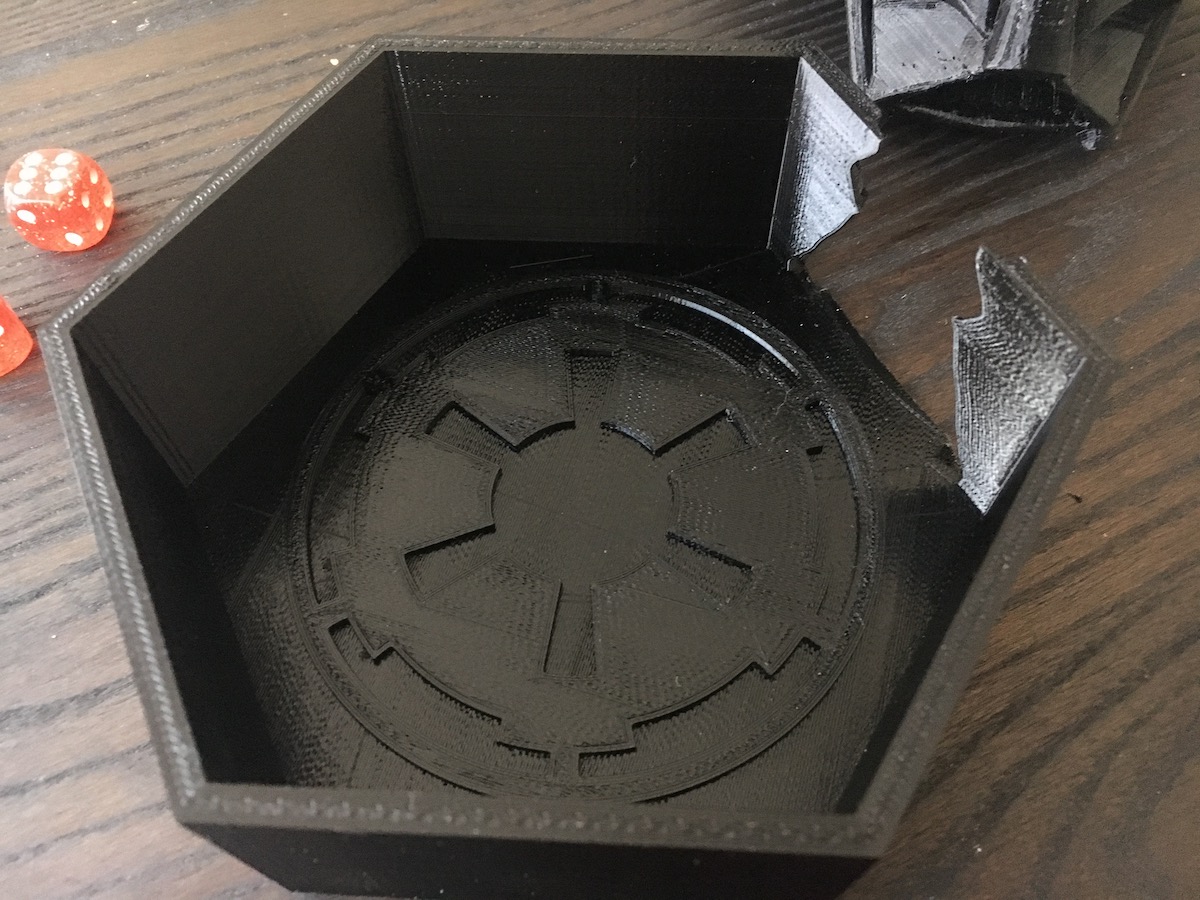

  4. Create a tray to catch the dice
  5. Print the parts
  6. Ship it

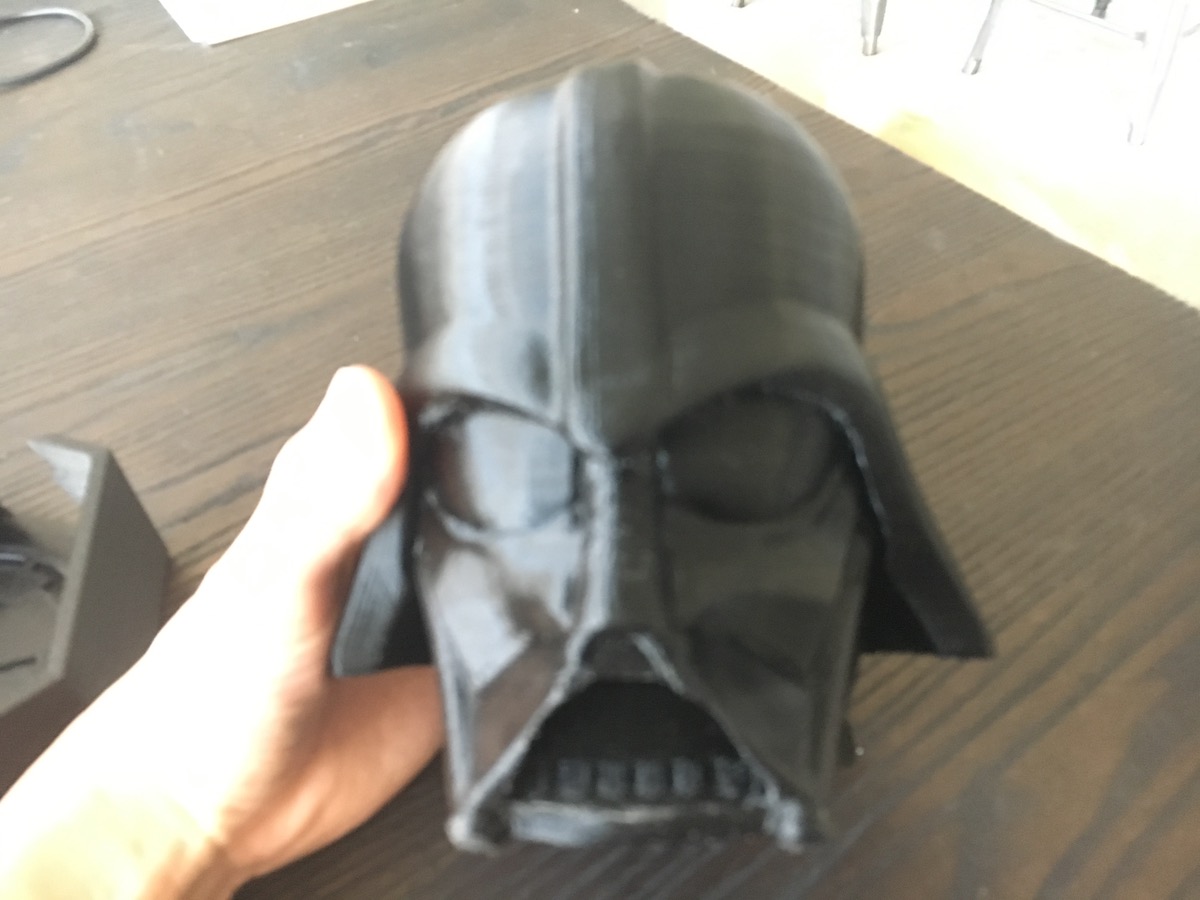

Parts 1-4 went incredibly smoothly all within Fusion 360. I successfully printed a ¼ size test part to ensure the path I created could be printed without any internal support structures to minimize post processing work. Unfortunately, I then ran into printer issues I had never previously encountered…

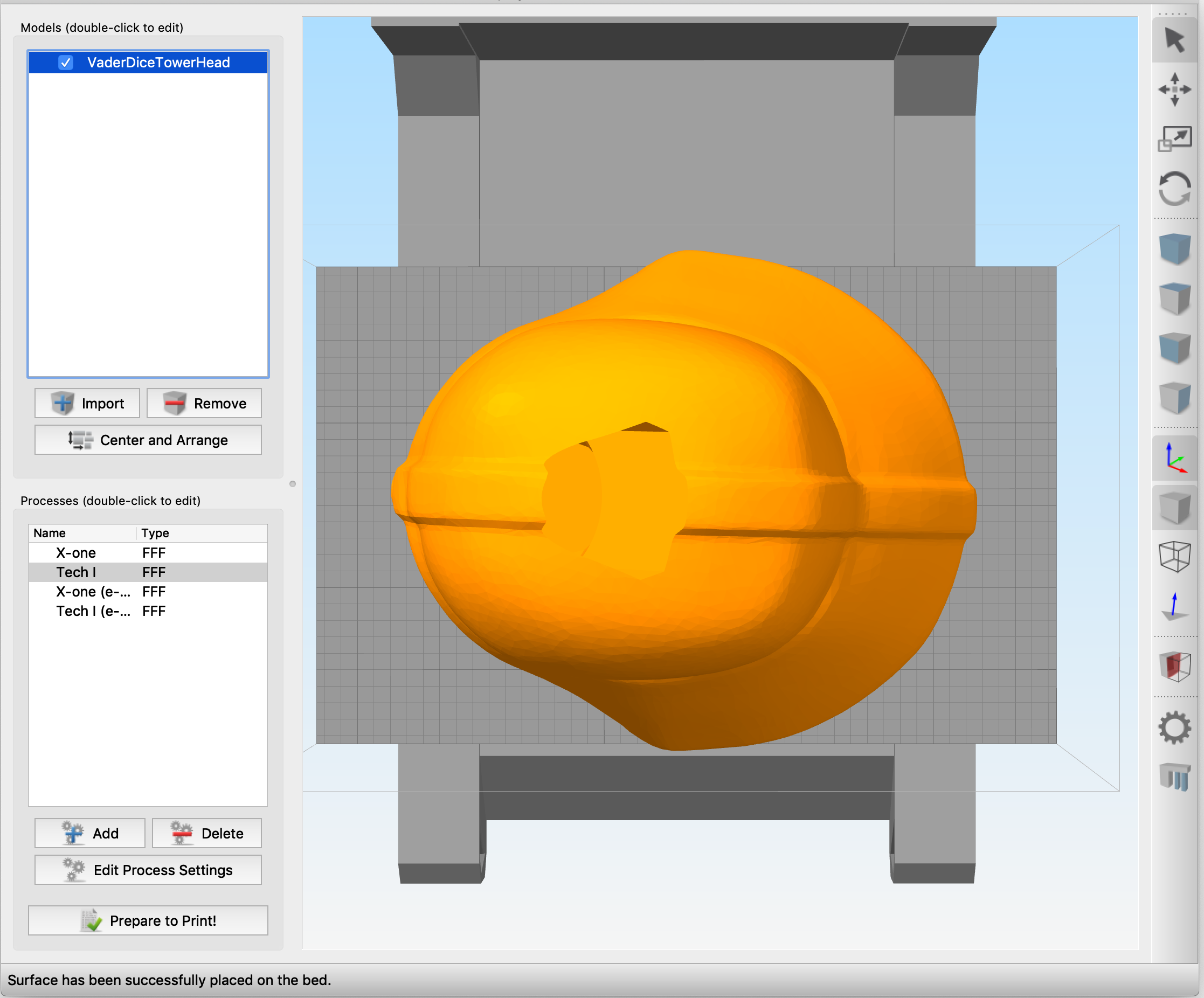

My Monoprice Maker Select Plus (aka Wanhao Duplicator III Plus clone) has been a workhorse without any major issues for years now. Of course, she decided to act up when I was up against a deadline since birth dates are immutable. My printer would randomly stop working and send bed temperature errors before rebooting. I pinpointed the problem to the thermistor on my print bed, but I didn’t have time to mess around. Luckily for me, my neighbor across the street literally has a print farm in his bedroom (15 machines and counting) so I was still able to get the parts made on time. The only unfortunate thing is that his machines are smaller than mine—so he had to scale the size down by 5% to get them to fit. (I found out later that the fix I needed on my printer was incredibly basic: the kapton tape holding the thermistor to the bed loosened over time, thus the printer received intermittent temperature readings.)

Luckily, the 5% reduction in size did not severely diminish the part’s functionality:

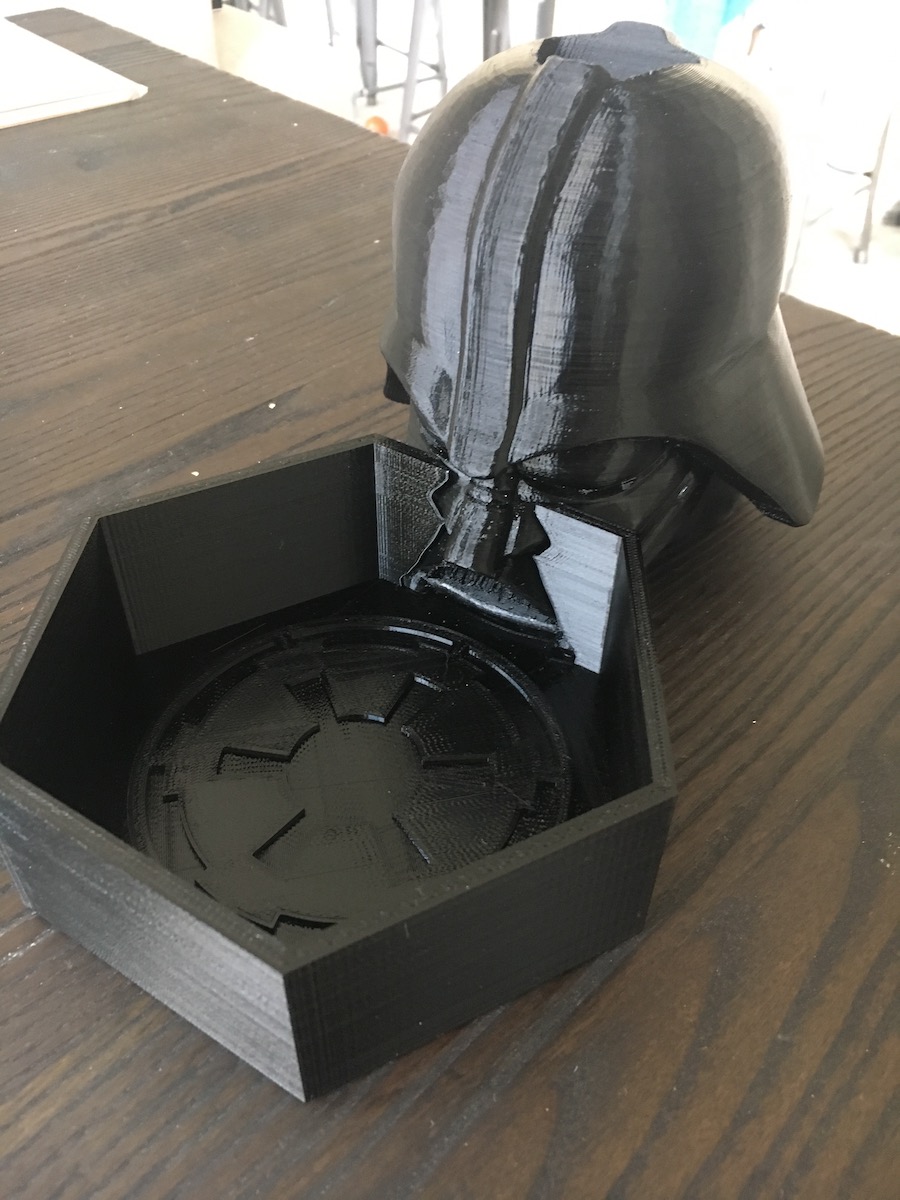

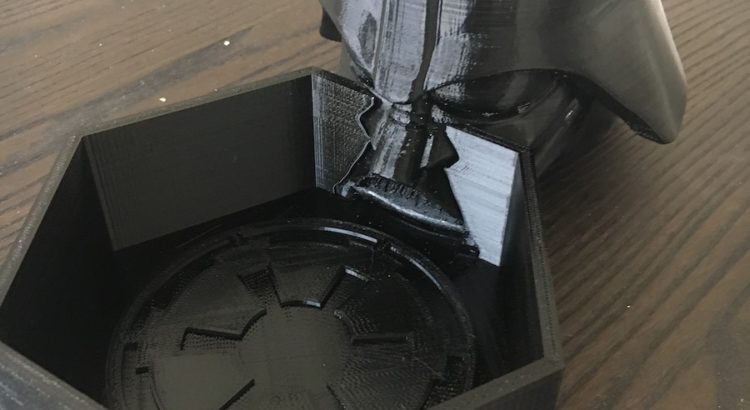

It works! May the Force Be With You!

I’m incredibly happy with the results of this project. I enjoyed the challenge of modifying an existing mesh to create a new, meaningful, and practical object. Even though UPS spoiled the surprise by giving Nick a notification about the arrival of a package sent from my area, and the package arrived late, I’m pretty sure he was very pleased upon arrival.

Thanks for making it to the end of this post—here’s an incredibly sparse build gallery:

Star Wars Joycon Holders

TL;DR: I made custom Nintendo Switch Joycon Controller holders in the shape of Star Wars Y-Wing and A-Wings.

I’ve been traveling quite a bit this year, and my Switch has been a great companion surprisingly easy to bring around. However, the biggest gripe I and everybody else has with the device is that it is no fun to use the controllers in single joy-con mode. I found and printed some neat grips that make it a bit easier to use them in this mode, but I’ll cover them in a future post.

In this project, I made some ridiculously tardy birthday presents for two of my Switch-owning friends: Y-Wing and A-Wing Joycon holders. Honestly they aren’t that practical, but they technically *are* functional, and I think they look pretty cool. I started by downloading STL files from thingiverse of various Star Wars ships and a simple dual-joycon holder.

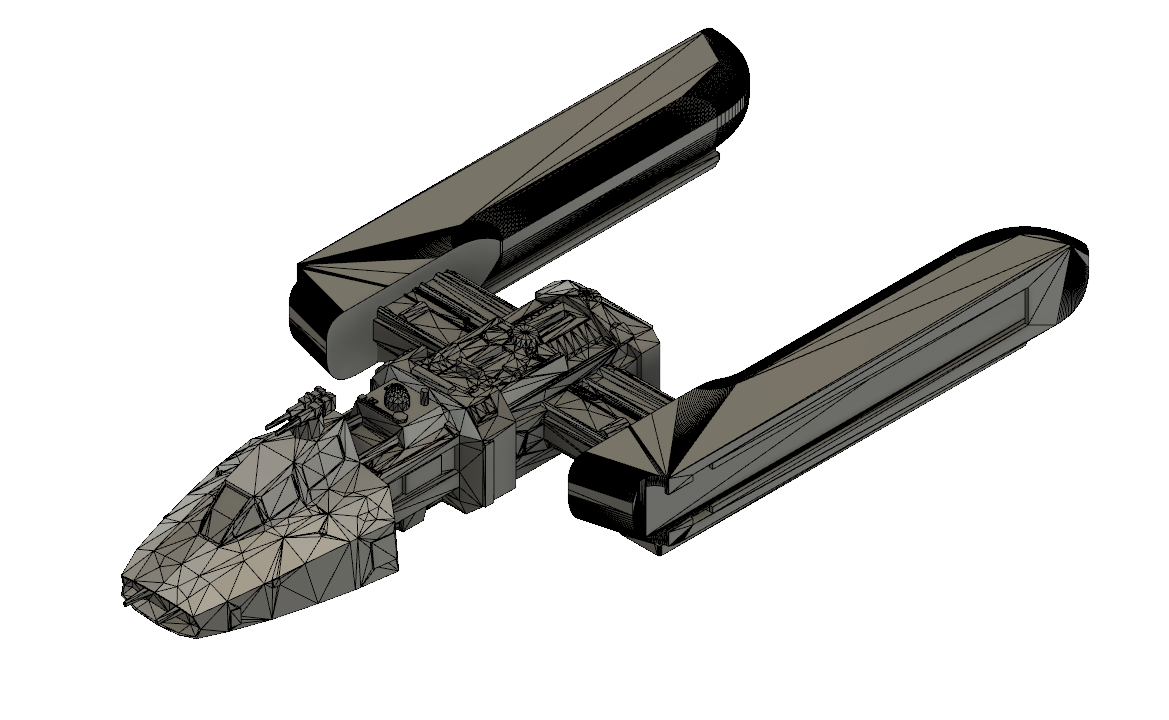

In Fusion 360, I chopped off the joycon rails and saved the bodies as separate components so I can reuse them in multiple projects. Next, I started processing the Y-Wing by simplifying a lot of unnecessary mesh details, cutting off the engines, then making the mesh into a solid body. I inserted the joycon rails where the engines used to be and played around with the scaling of the Y-Wing body to fit well. From there, it was a simple merge bodies, slice, and print… or so I thought.

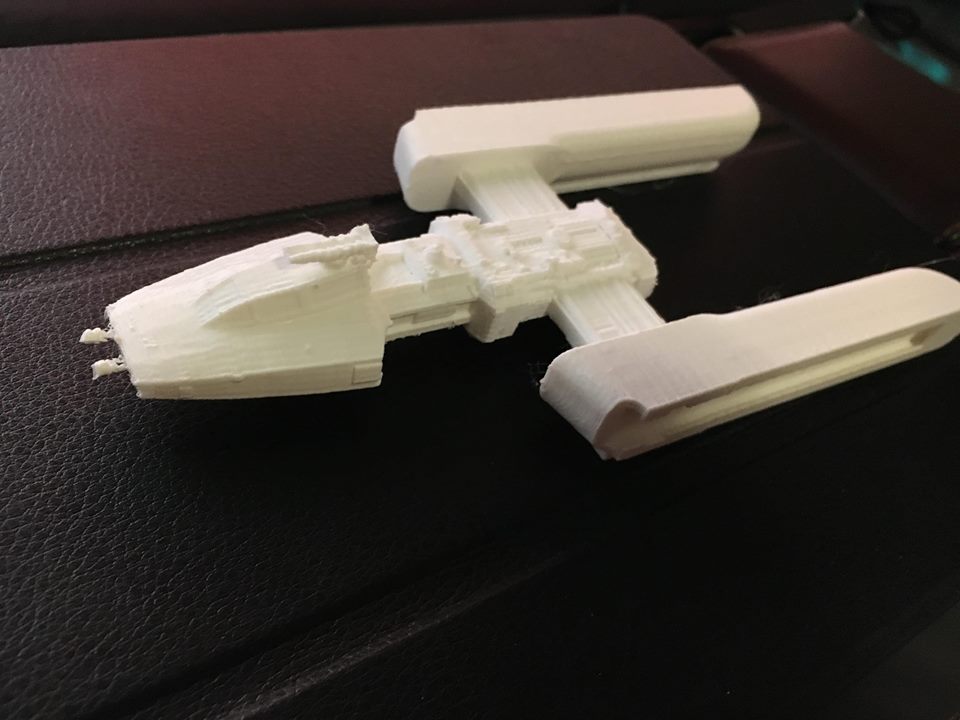

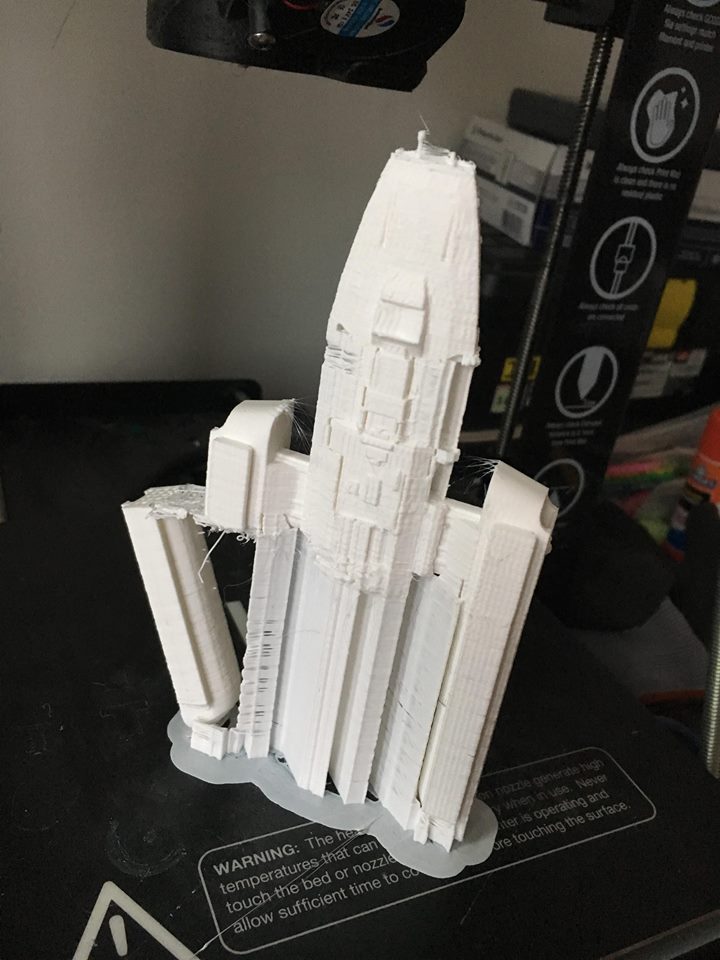

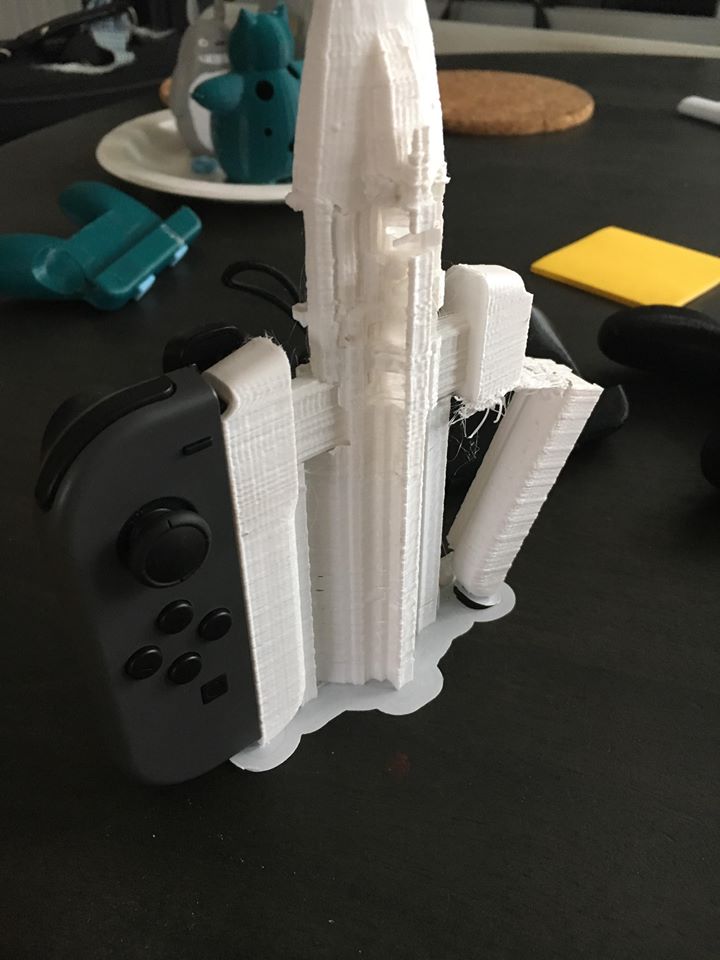

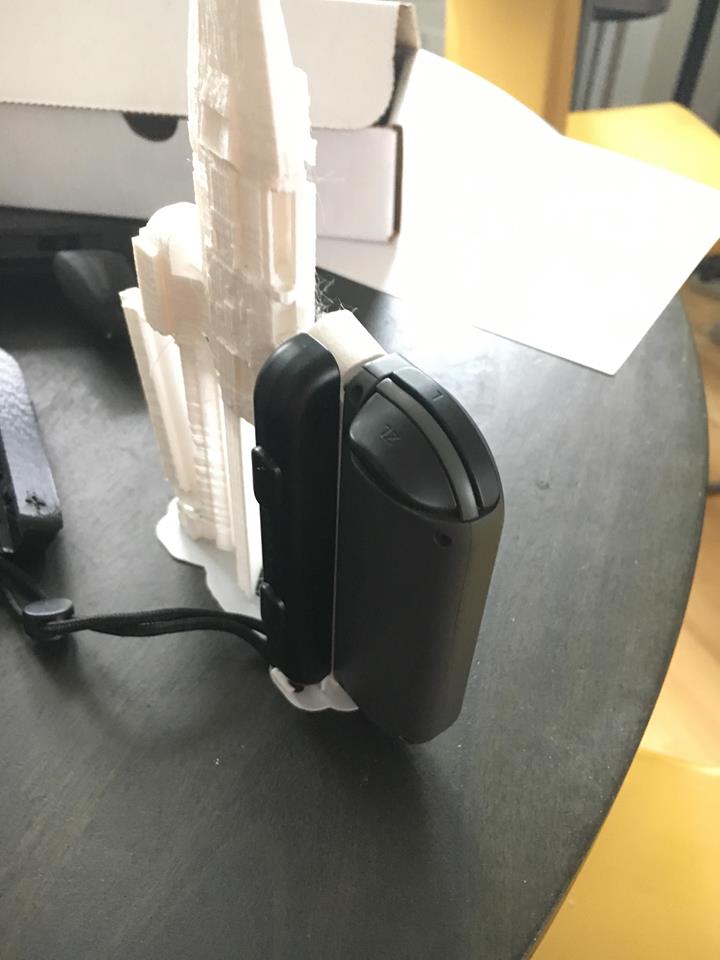

Unfortunately, I messed up some of my slicing settings in my first attempt, and part of the print fell over. Even though part of the print had failed, I was still able to do a geometry check, and I was pleased with how well the joycon and strap both fit into this model.

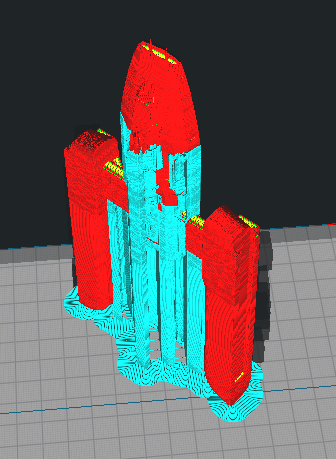

My slicing error was in a boneheaded misconfiguration of adaptive layer settings. Using adaptive layers in slicing software allows for faster prints since the printer is programmed to use larger z-steps if it is safe to preserve model details. The base layer height for this was 0.12mm, and by entering the deviation to 0.2mm, for some reason I thought I was setting the absolute height limit for the print to 0.2mm, but this was not the case, and my printer was trying to print with 0.32mm layers, which it just was not able to do. On my subsequent attempts, I dialed the deviation back and was able to get a really nice print.

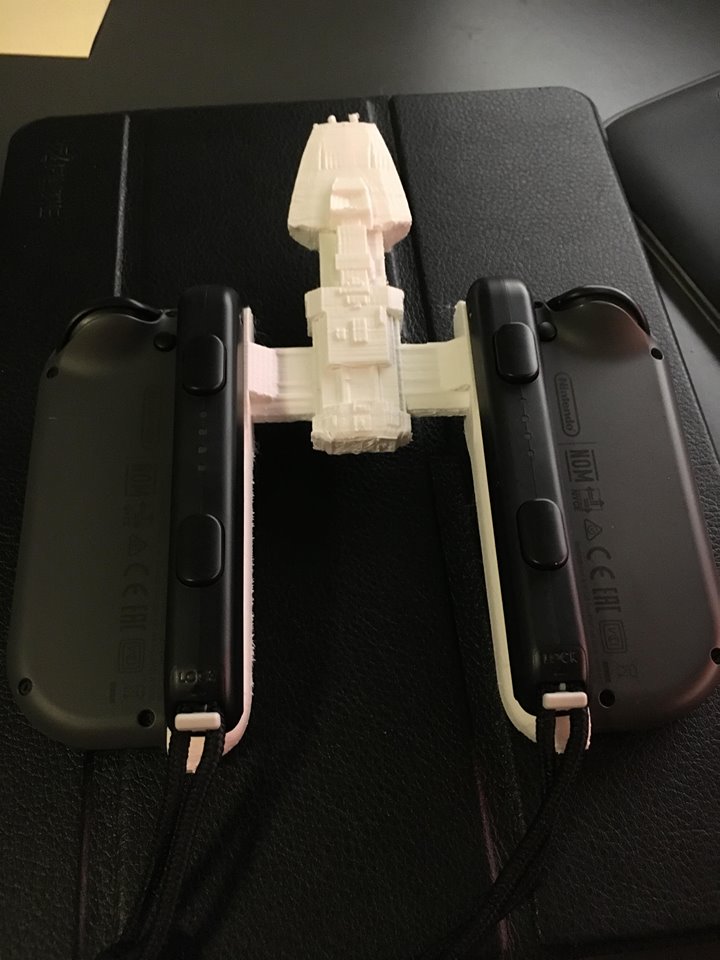

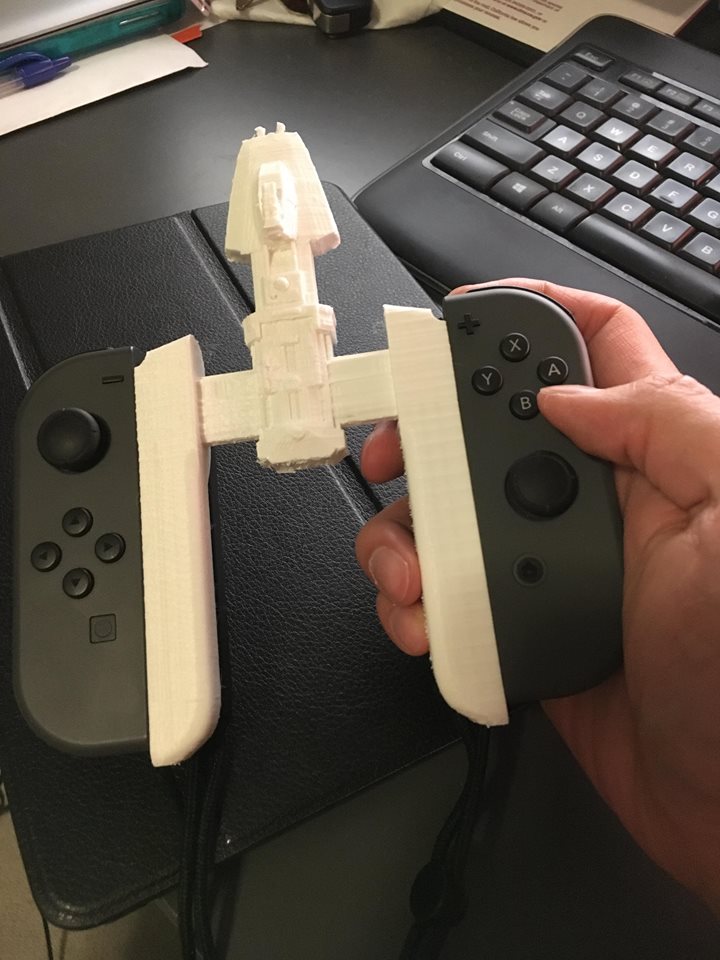

Y-Wing gallery here:

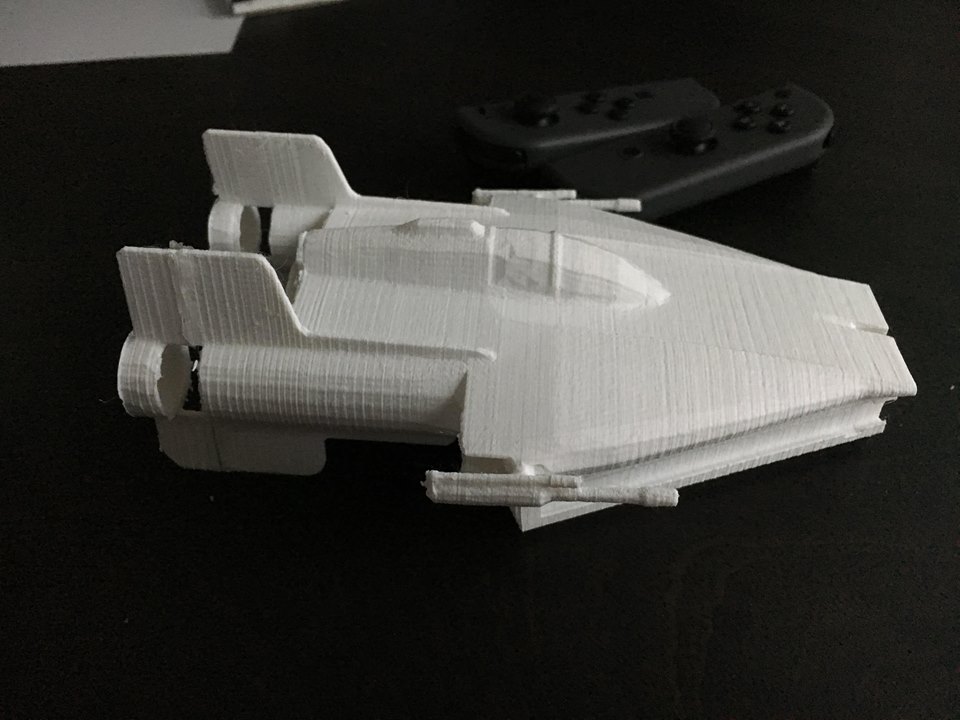

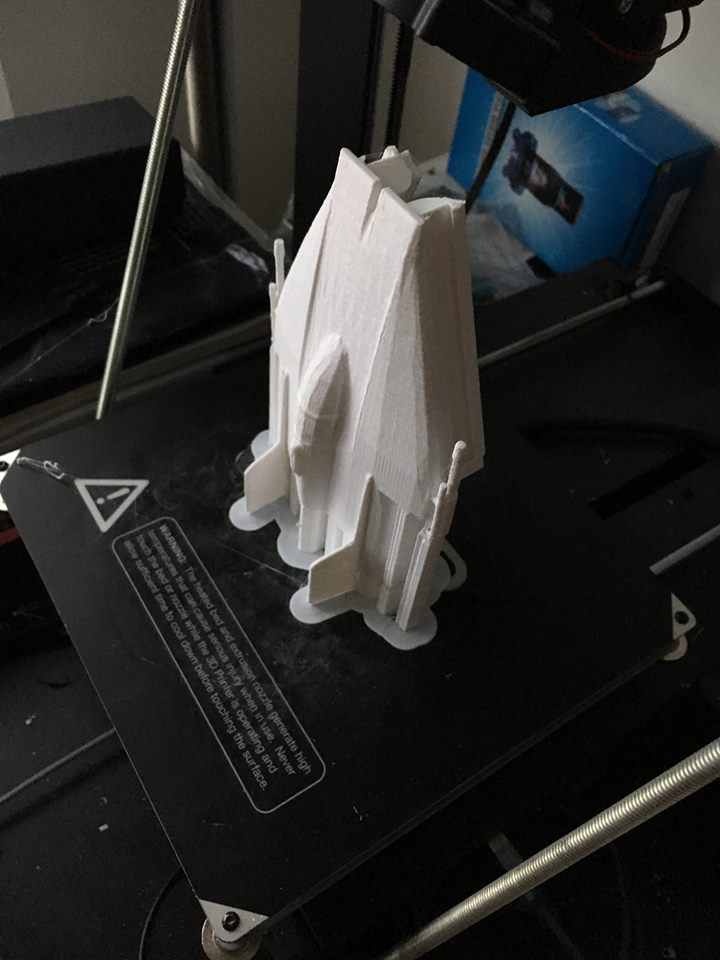

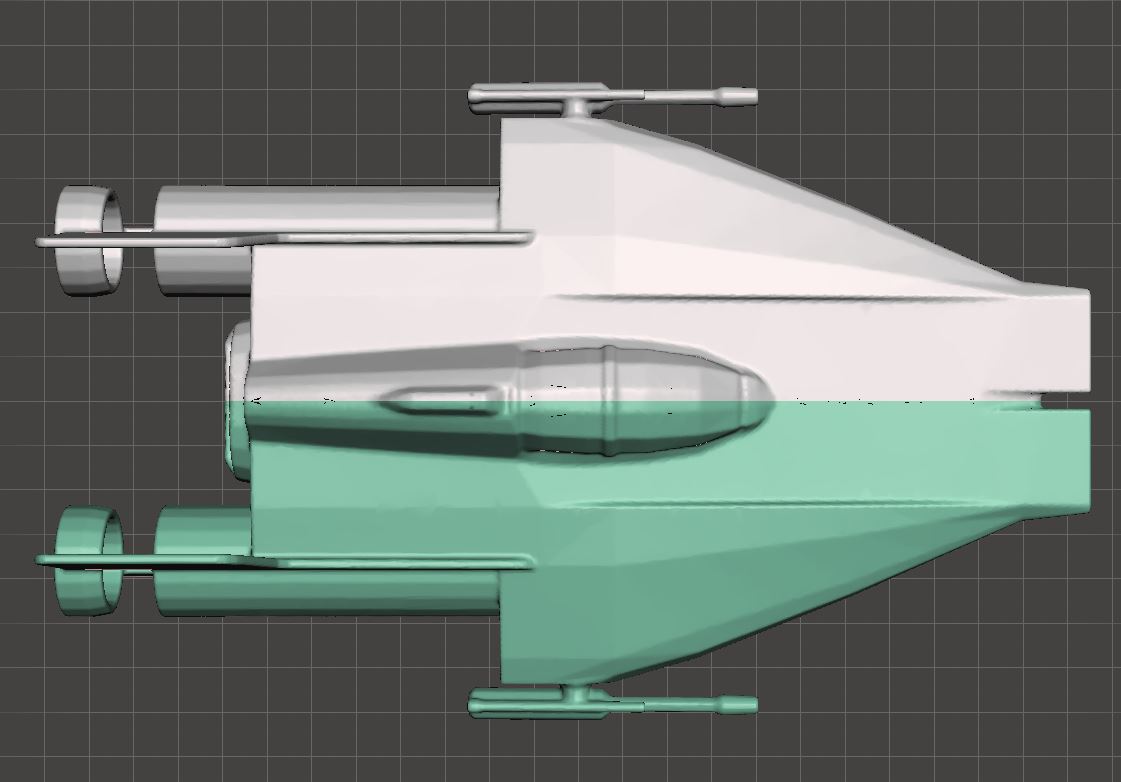

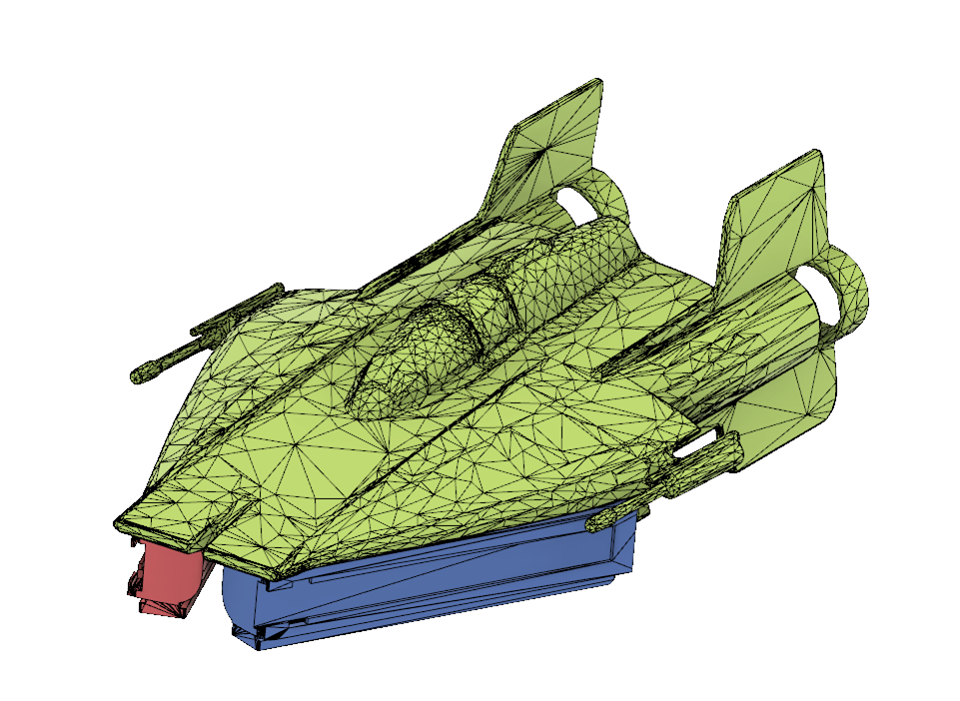

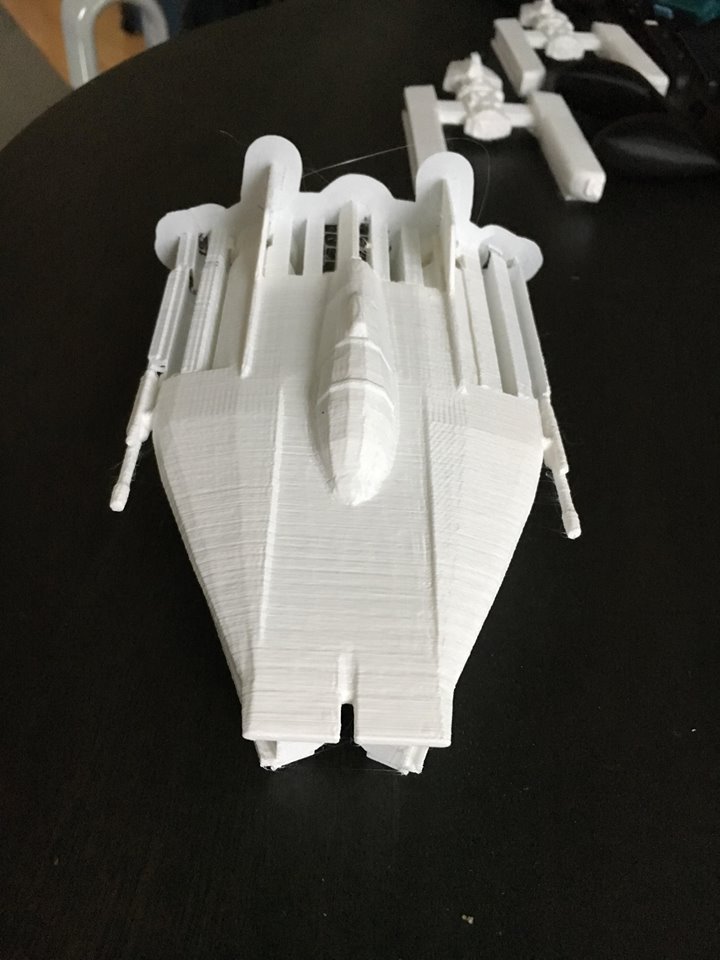

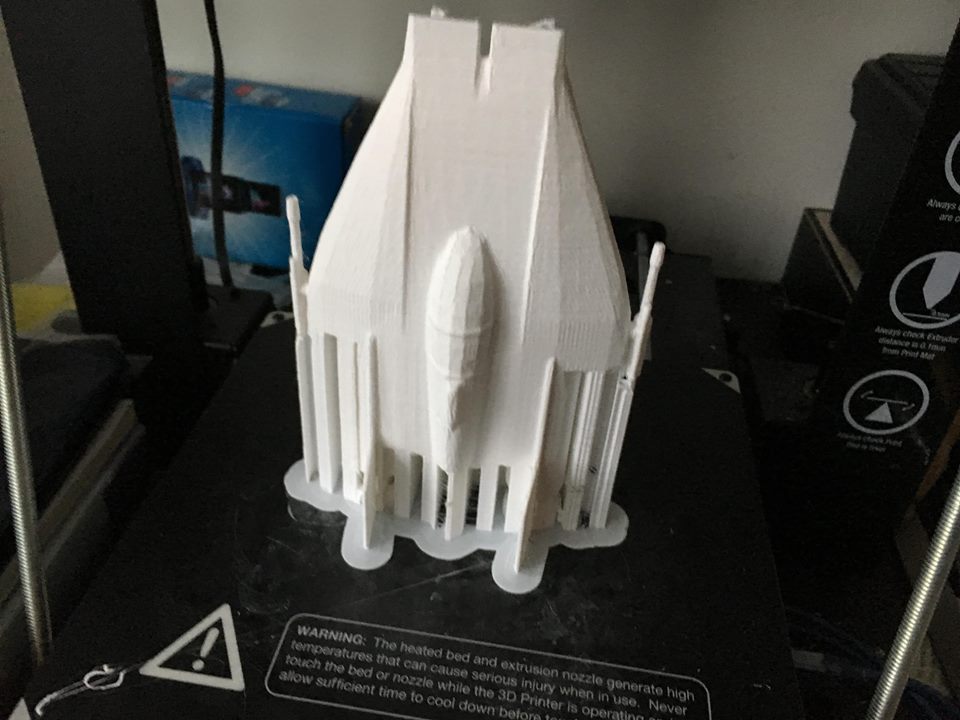

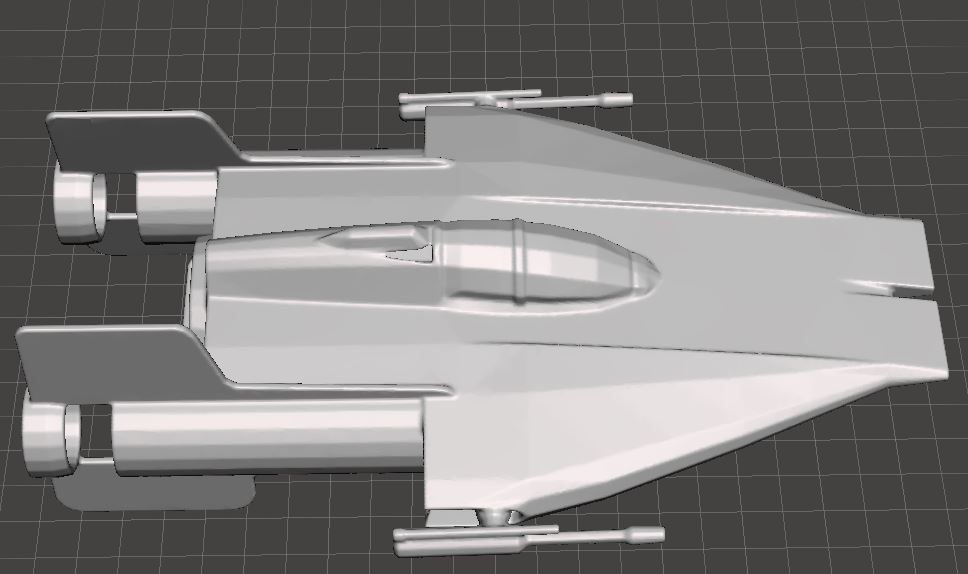

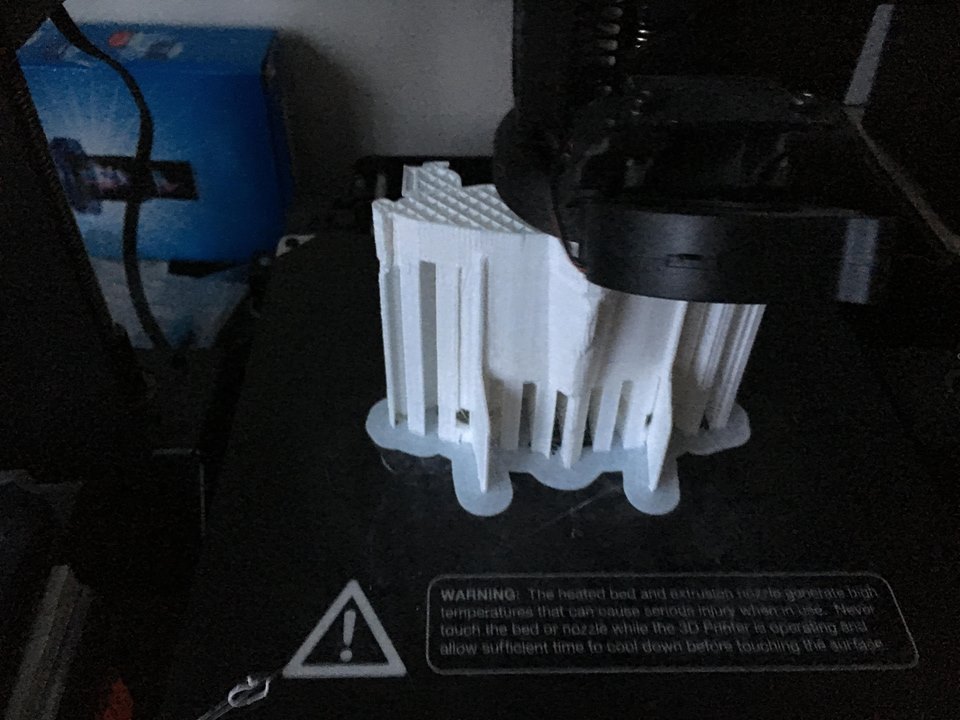

The A-Wing model took a bit more pre-print processing. First, I noticed a small hole in the surface, so I used meshmixer to mirror the better half of the model. Second, the model I had was hollow (there was an internal surface), which would have caused issues later on in combining with joycon holders and printing. The hollow body was simple to rectify—I created a block larger than the A-Wing then used combine to cut the A-Wing from the block. This left several bodies, including one that was the ship model cavity, which was added back into the main ship model. Just as for the Y-Wing model, I imported the Joycon rails, scaled the Awing body, and moved everything in place before combining the bodies.

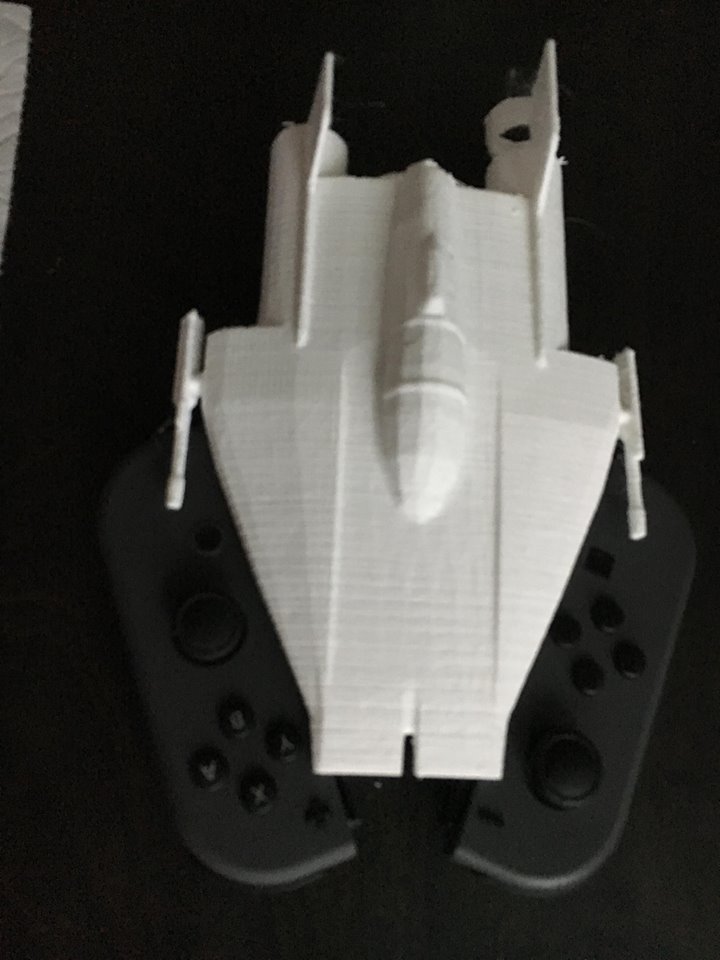

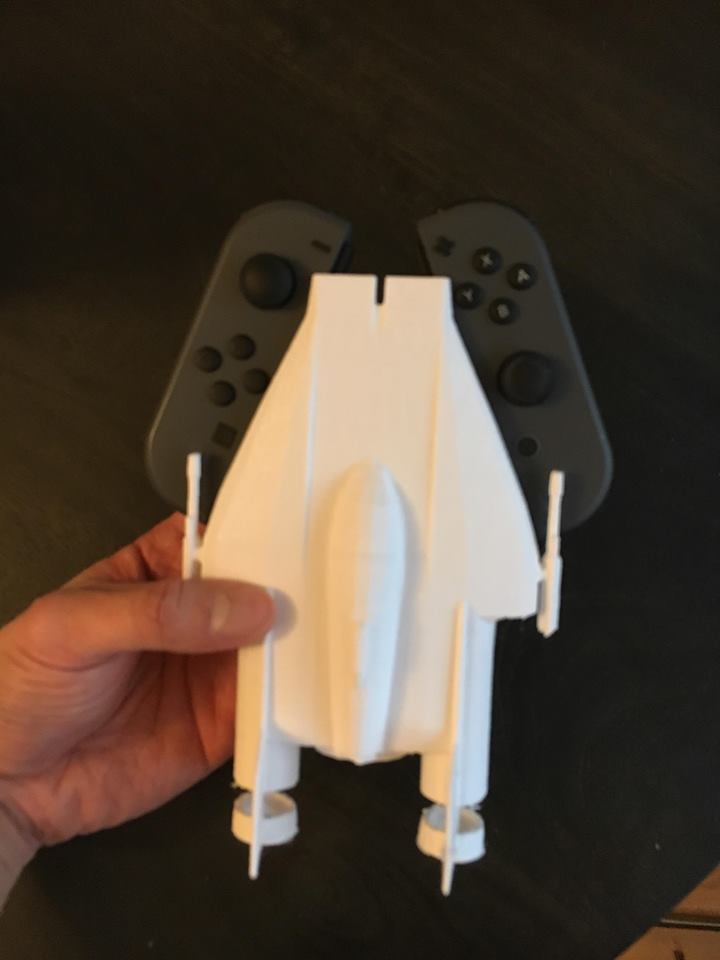

I’ll admit the joycons on the A-Wing are less than ideal, but I still think it looks cool. 😛

Infinity War Masks

I waited 10 years and 18 movies for Infinity War, and as a superfan with a movie club, I obviously needed to watch it opening night. I bought 22 tickets in the center of the theater within 15 minutes of their availability, but unfortunately, Alamo Drafthouse’s site wasn’t ready when I was. Alamo is by far my favorite movie experience, and the moviegoers there are true fans. It’s pretty normal for opening night premiers to be filled with people dressed up (scroll down far enough and you might see a familiar face :P).

I managed to cajole a few members of my movie club to join in geeking out and dress up for the premiere at AMC. As somewhat expected, we were like the only group dressed up there, but whatever. We had fun and that’s all that matters.

I continue to be pleasantly surprised at the utility of my cheap little 3D printer. This was the first project I completed that involved painting post-print. I found some decent STL’s for Ironman and Black Panther on Thingiverse. While these base STLs worked, there were some changes I wanted to make but didn’t have time to do so, cause of course I procrastinated. I didn’t start making the masks for Abaho and I until 5 days before the movie.

The first part I printed was the faceplate for the Ironman MK50 (Bleeding Edge armor that debuted in Infinity War) helmet. I measured the space between my eyes and scaled everything accordingly. I tried it on and it seemed to fit well, so I continued with the rest of the helmet. It turns out that my head does not have the same proportions as that of the guy who originally designed the model, so I couldn’t get the skullcap on:

At this point, I only had 3 days to print and paint 2 masks, so I decided to cut and print only the front part of the Ironman helmet to save time and ensure wearability. It was pretty easy to make planar cuts of the mesh files using Fusion 360, which was good.

I noticed that the STL I was using was not perfectly symmetric, and the parts didn’t actually fit perfectly together. It’s definitely something I’m going to address before I make my next print.

I needed to do a decent amount of work to prepare the Black Panther mask for printing. First, the raw STL had a ton of unnecessary detail and sharp edges on the inside of the mask, which would have increased the print time and made the helmet more uncomfortable to wear, so I did lot of simplification and smoothing of the inner surfaces. Next, I needed to slice the helmet into a bunch of parts to both fit on my printer, and print in time (I only had about 36 hours cause I ended up printing TWO Ironman masks). Initially, I was worried about having visible weld lines in this mask, but luckily, I bought some BLACK GLUE STICKS a few weeks earlier at Daiso (I didn’t know these were even a thing) to hide them perfectly.

Here’s a gallery of the build process:

Painting the Ironman masks was a huge pain since I needed to cover quite a bit of surface area using three different colors of paint (gold, silver, shiny red). To make the shiny red, I needed to mix a metallic copper paint with the basic red I bought (the red was too flat and bright to match the gold). The Black Panther mask in contrast was ridiculously easy to paint… the mask was already printed in black, so only a few raised areas needed to be highlighted in silver.

I was incredibly happy with how the finished helmets turned out. I added a fabric strap to the back of the Ironman helmet with some hot glue for wearability. It turns out that Abaho’s head fit perfectly within the Black Panther helmet with no additional modifications needed.

Next up, I’m going to be printing out and attaching parts of the Black Panther mask we removed earlier. I’m also going to fix the model symmetry and adjust the dimensions to fit the proportions of my head.
