TL;DR: I made a shiba cookie cutter/face stamp combo for a friend. As a bonus, I made a bone-shaped stamp with her dog’s name on it as well :D.

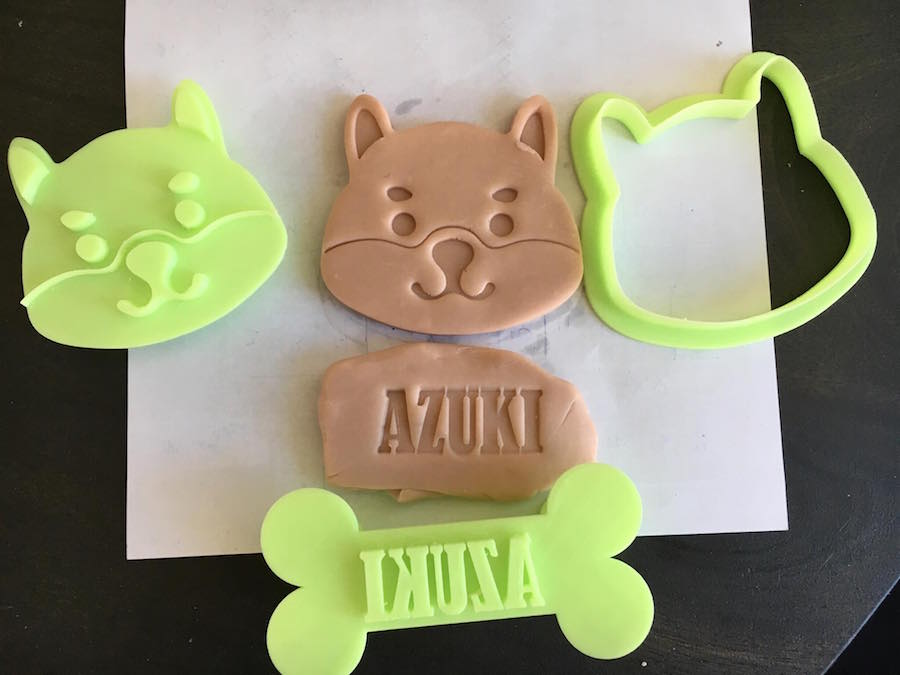

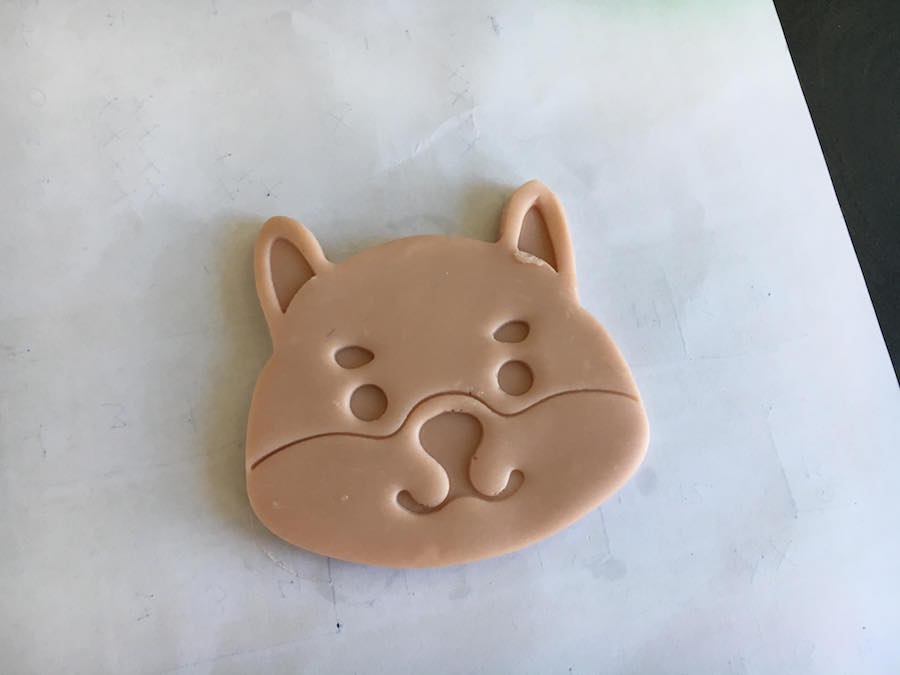

First up, here’s a photo of the completed cookie cutter, stamp, and name stamp. The overall dimensions of the stamp are approximately 3in in width and 2.75in in height.

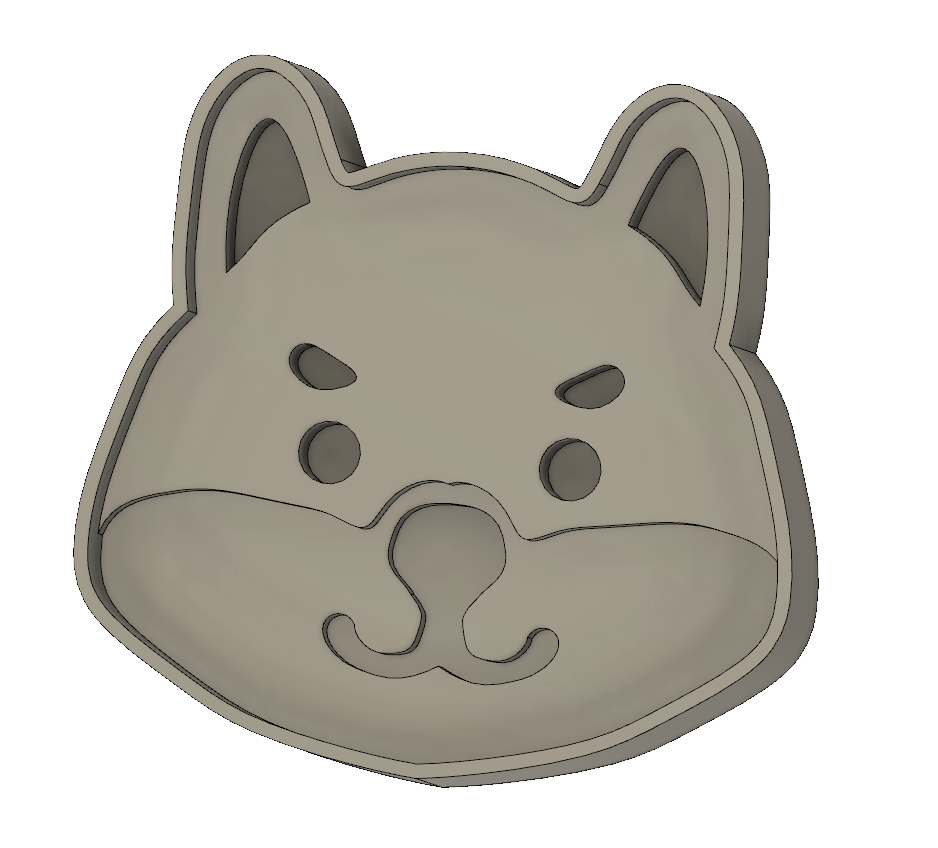

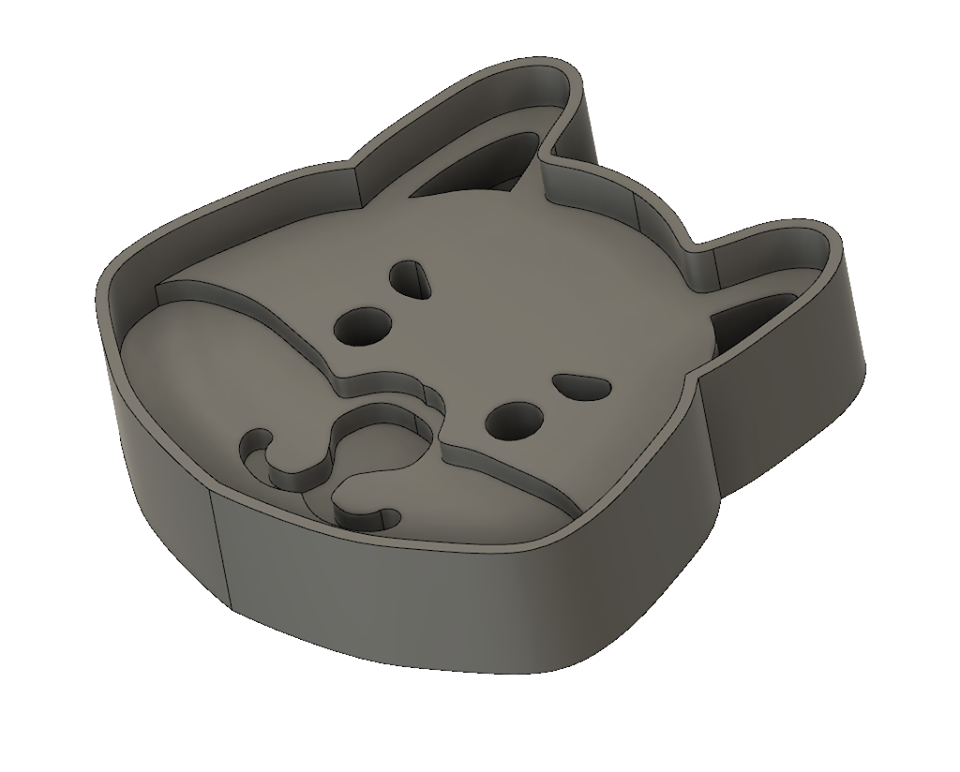

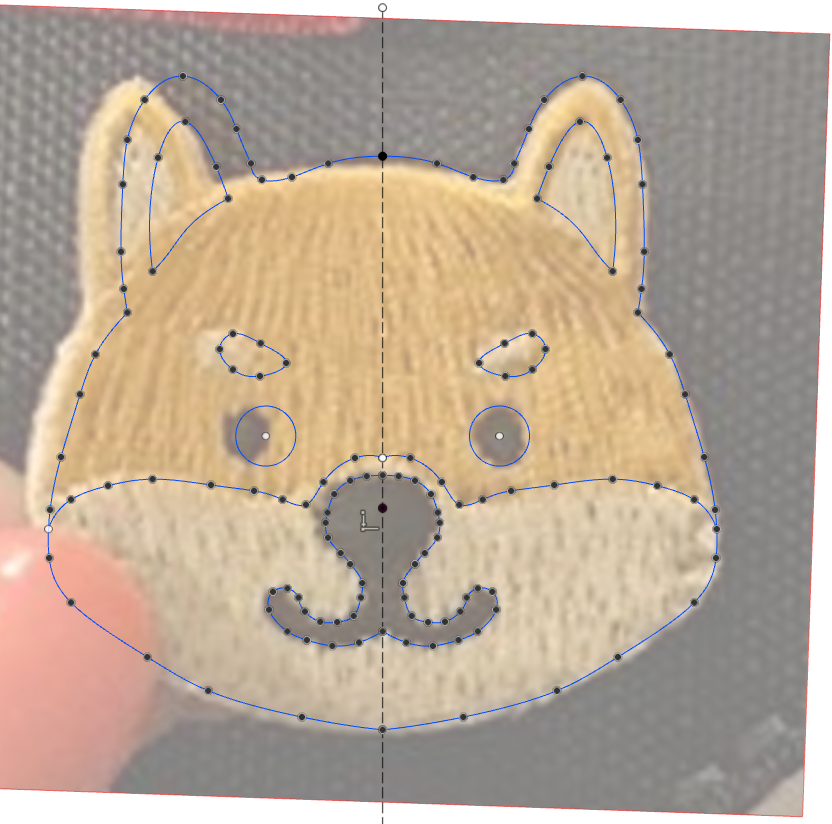

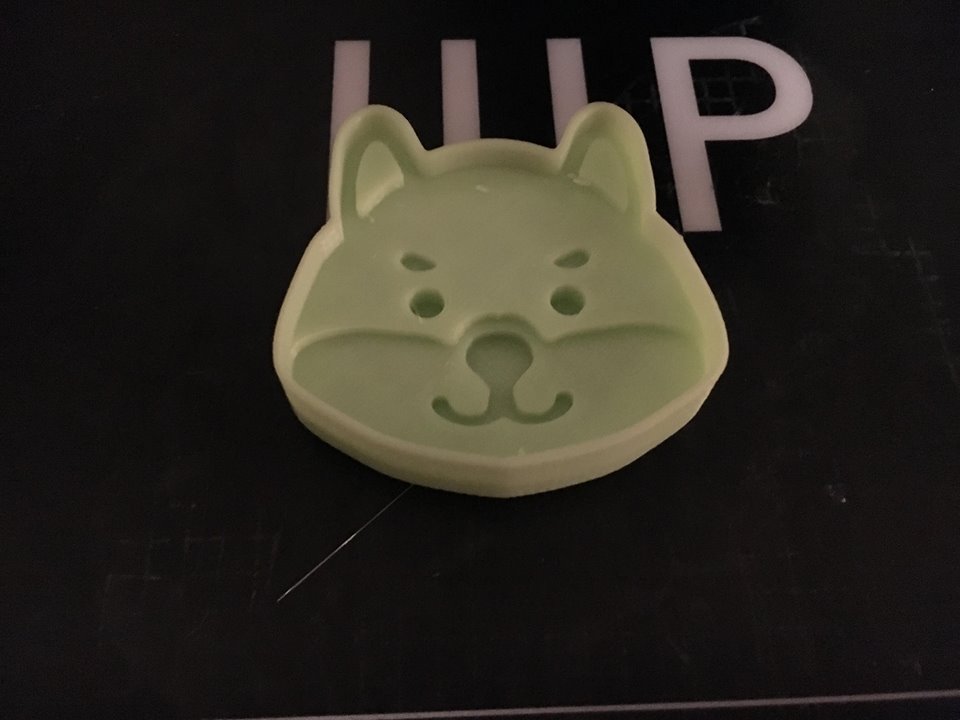

I received a request from a friend to design and print some stuff for her Shiba’s birthday coming up. I used a photo of her dog’s vest to use as a template I could trace with splines in Fusion 360. In my first version, I made a combined cutter and stamp by extruding various parts of the face to different heights.

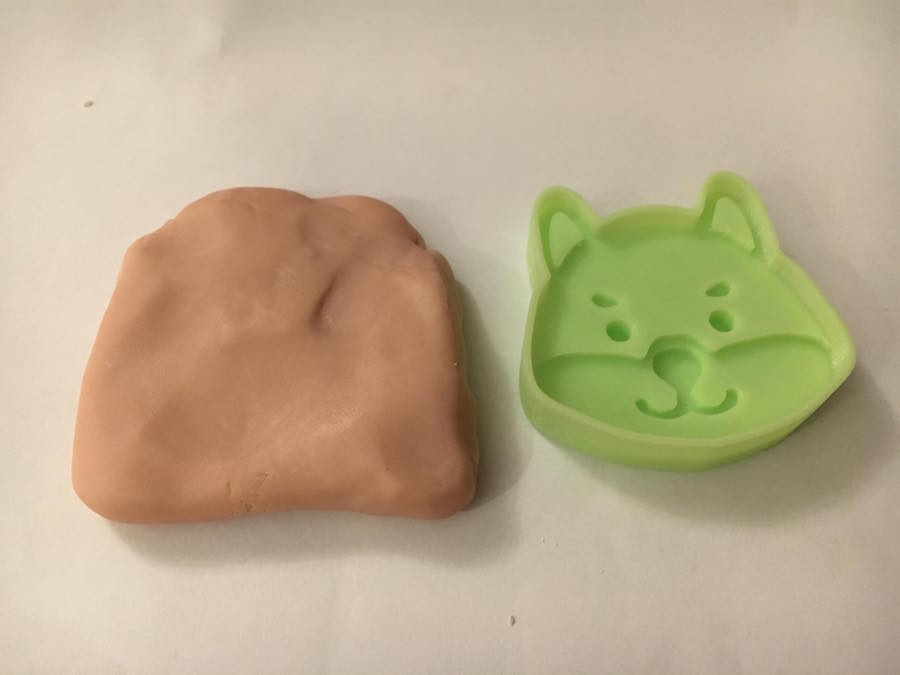

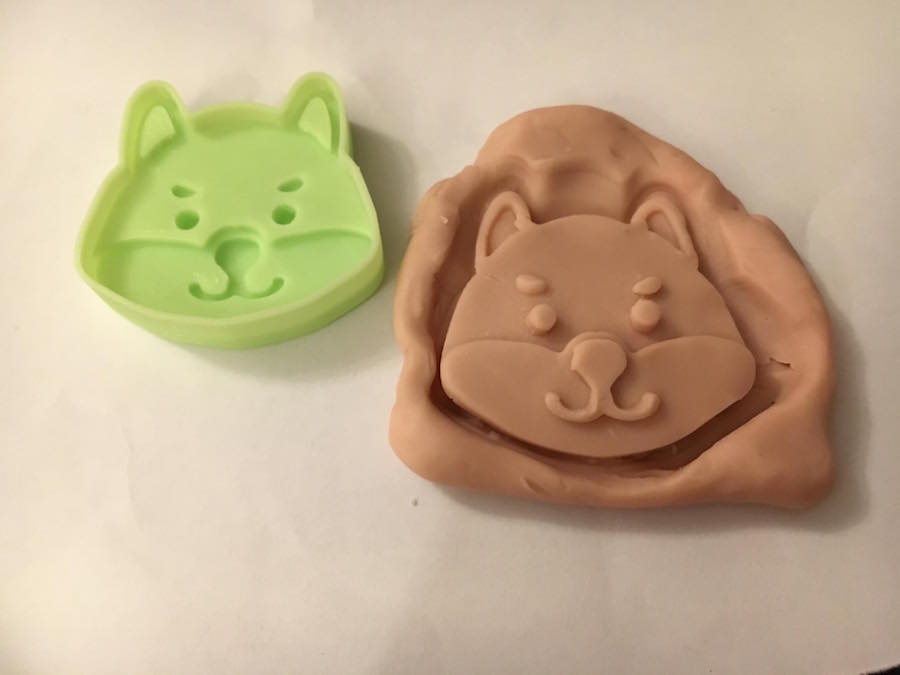

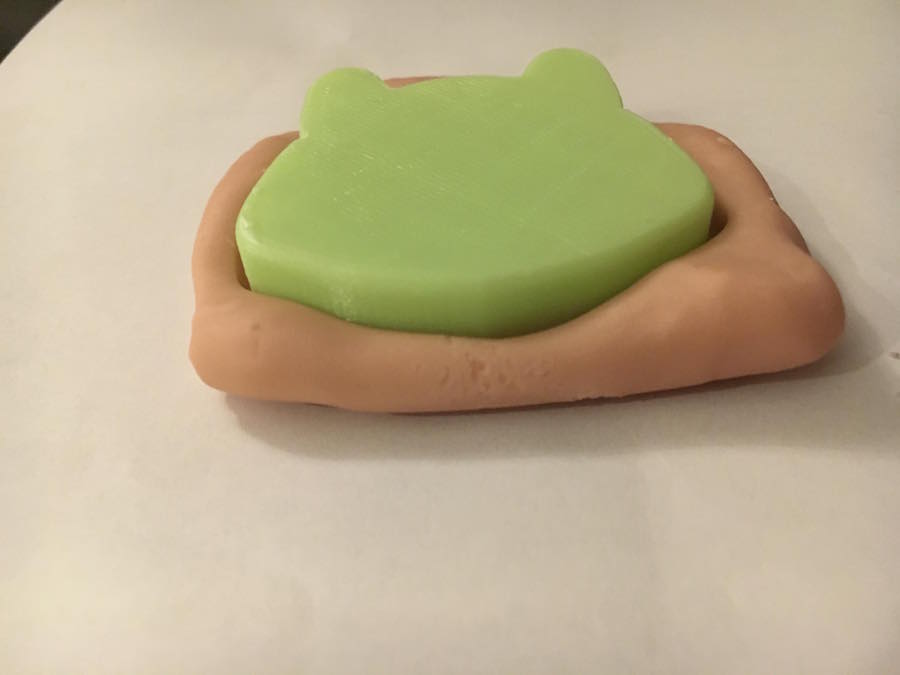

While the first prototype worked on polymer clay, it was pretty clear that a few simple tweaks could make it easier to use. First and foremost, it was pretty difficult to press the stamp down since I didn’t include any holes for air to escape. Second, it was a bit difficult to remove everything from the press. Third, since I had fixed heights, the cookies the stamp made would likewise have no flexibility.

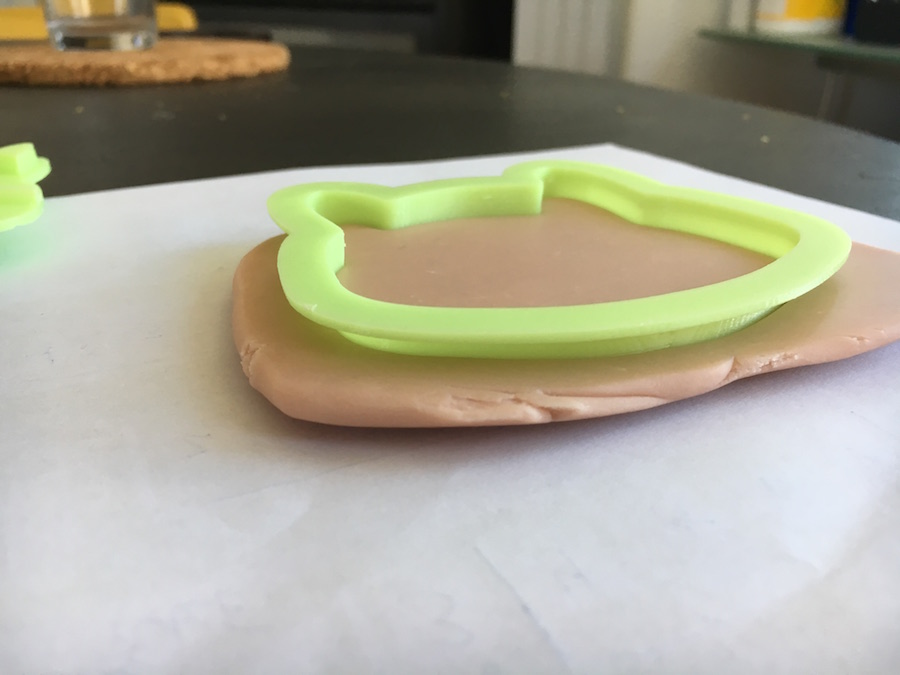

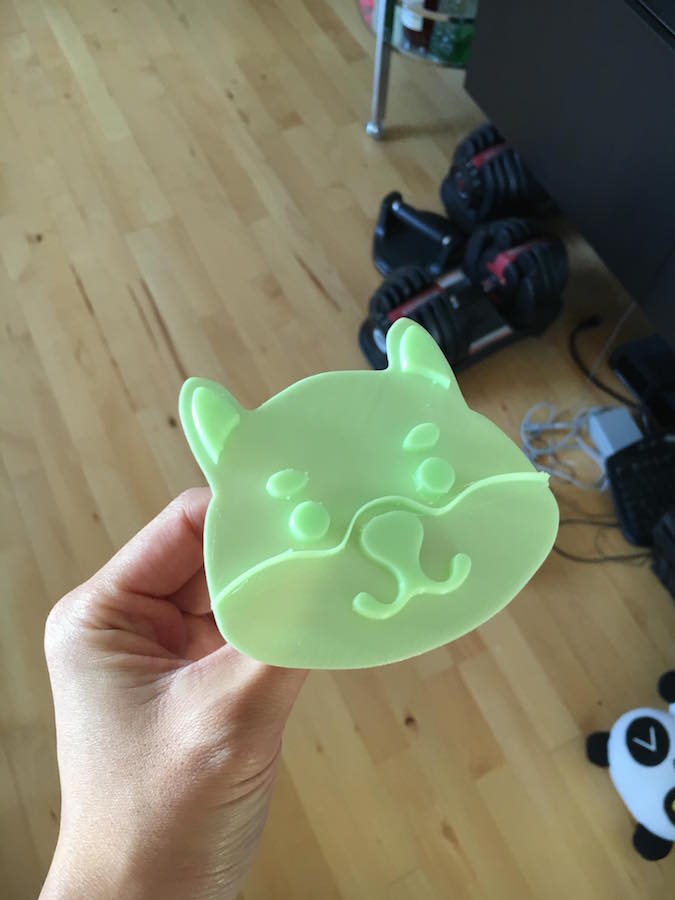

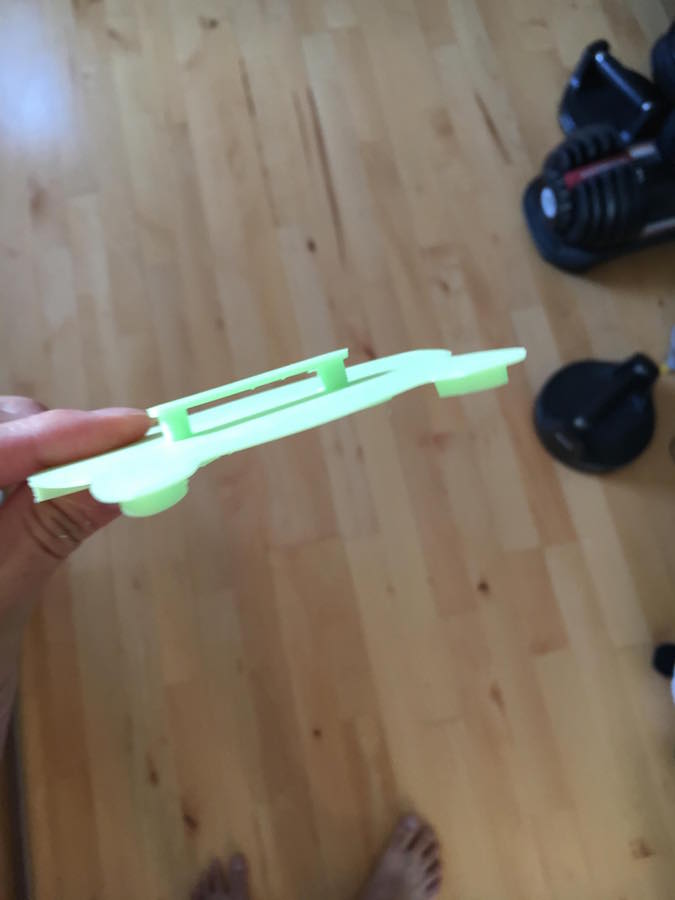

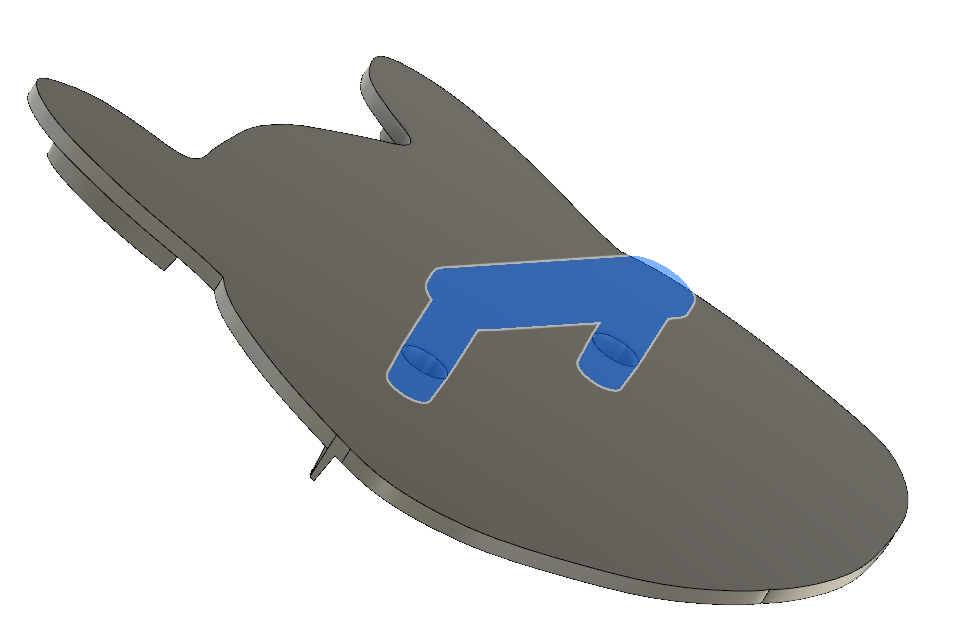

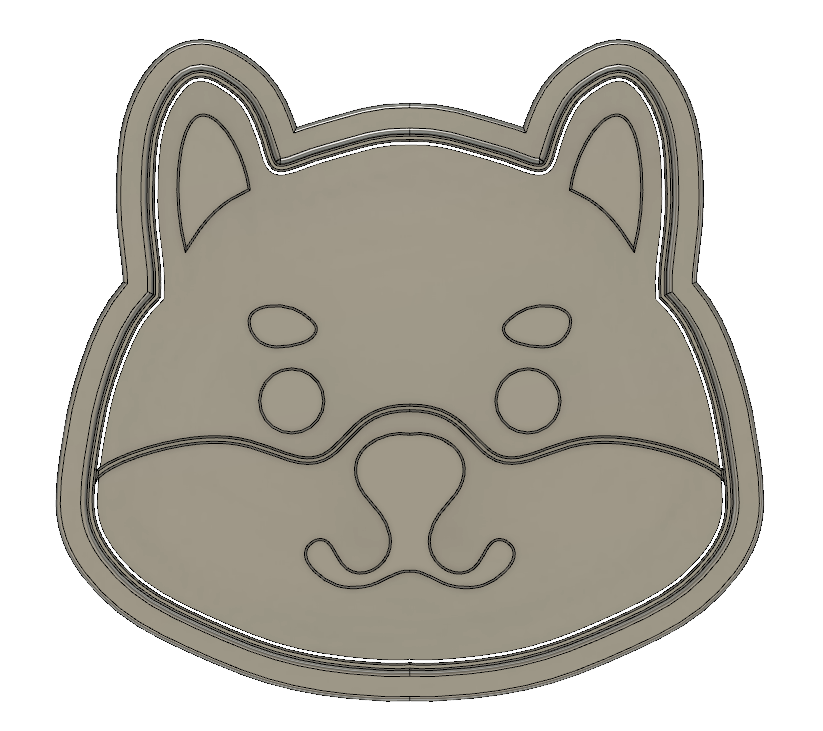

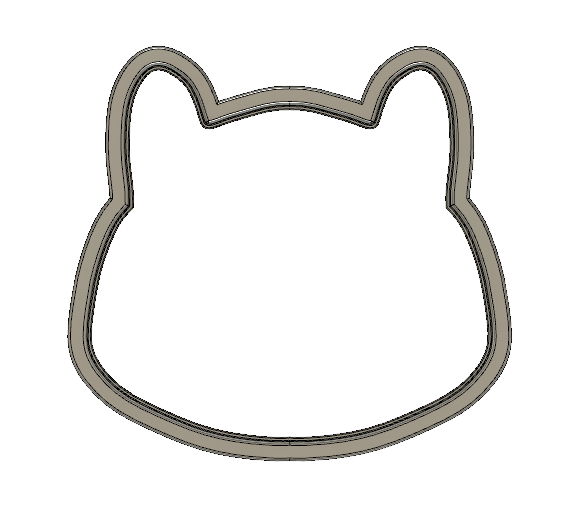

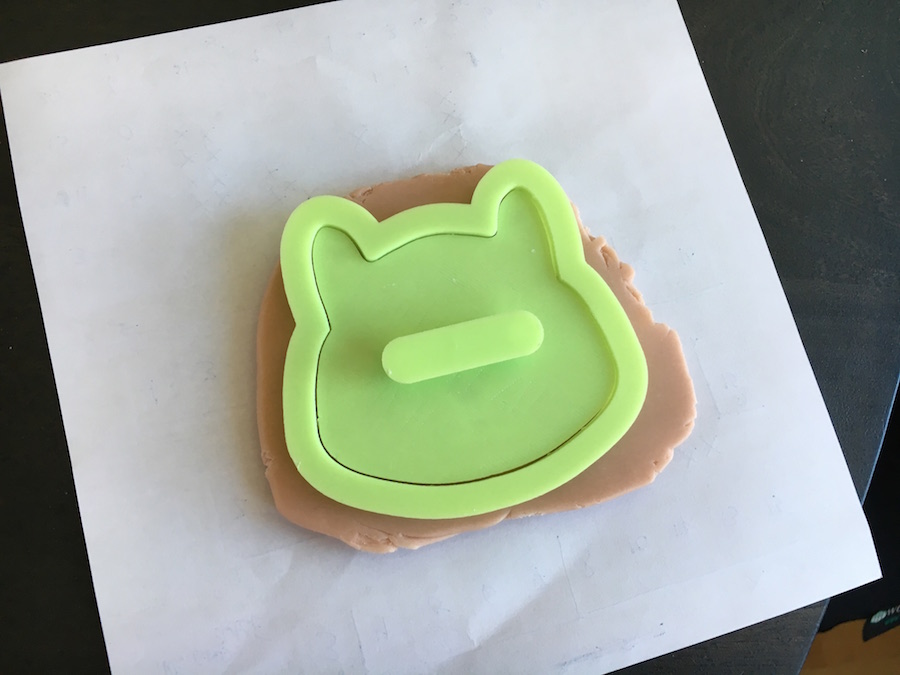

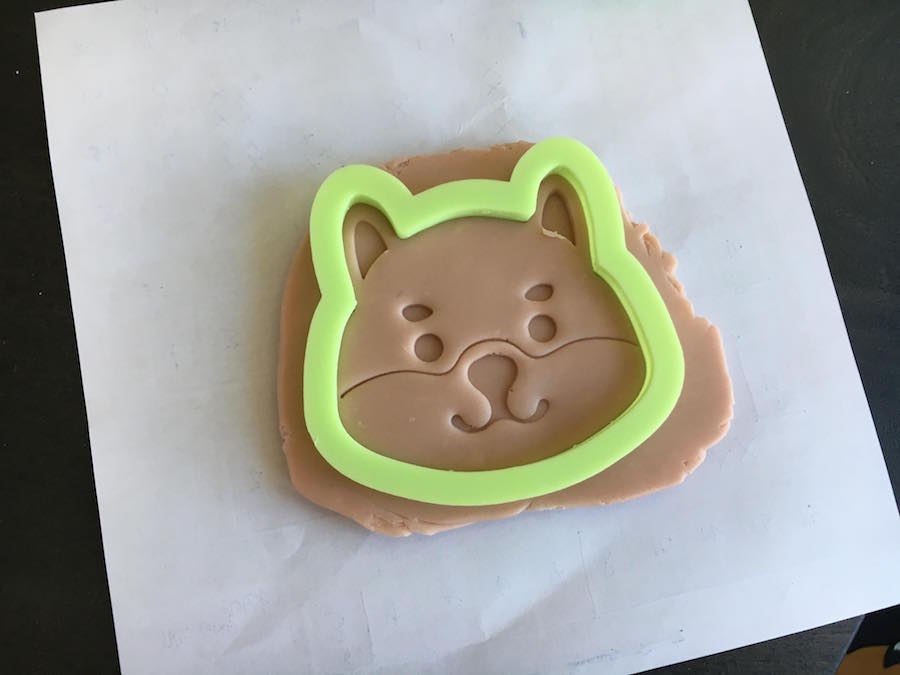

Changing to an outline cutter and a stamp for the face addressed all of the issues above and was very simple to do in CAD. The trickiest part was my desire to have a detachable handle to cut down printing time. I created mounting points for the handle by cutting holes beneath the eyes. On the stamp, I made sure to add a larger draft angle on the extruded areas to make it easier to detach from the dough.

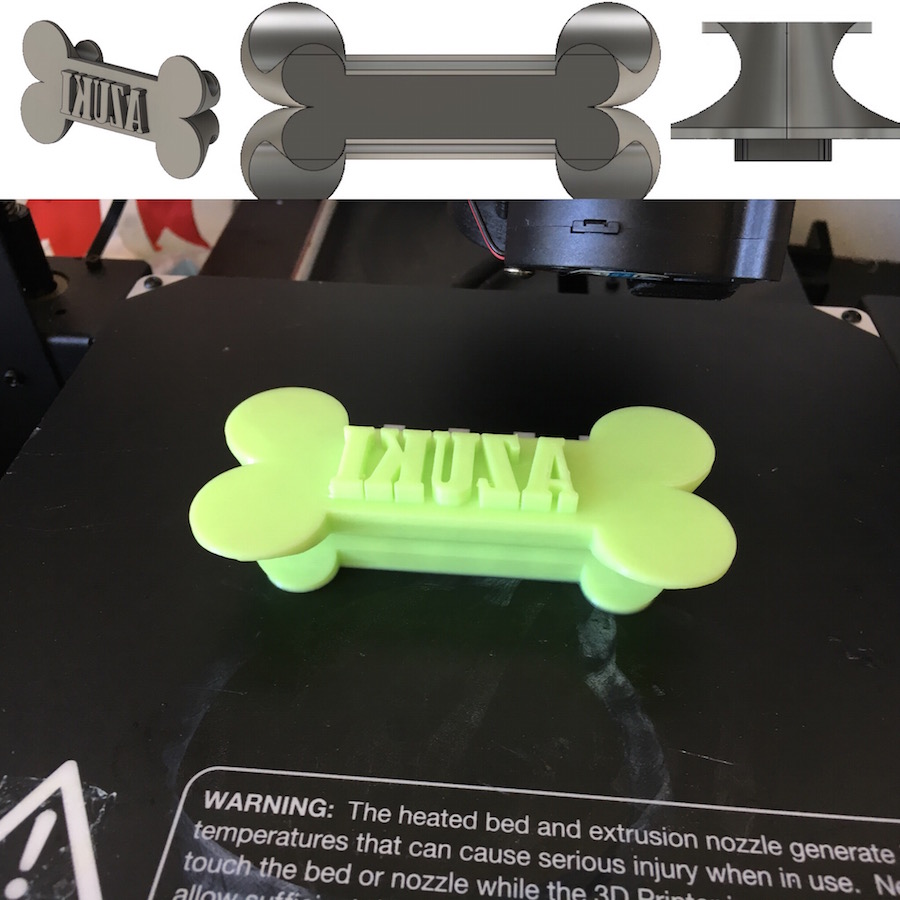

I also made a simple name stamp. I was pleasantly surprised at how easy it was to create extruded text in Fusion. The rest of the bone shape and handle were essentially just decorative. I think the name stamp has a potential issue with the letters being too close together, but that should be something easily addressed in a future revision.
